PatchMate:Power Transmission

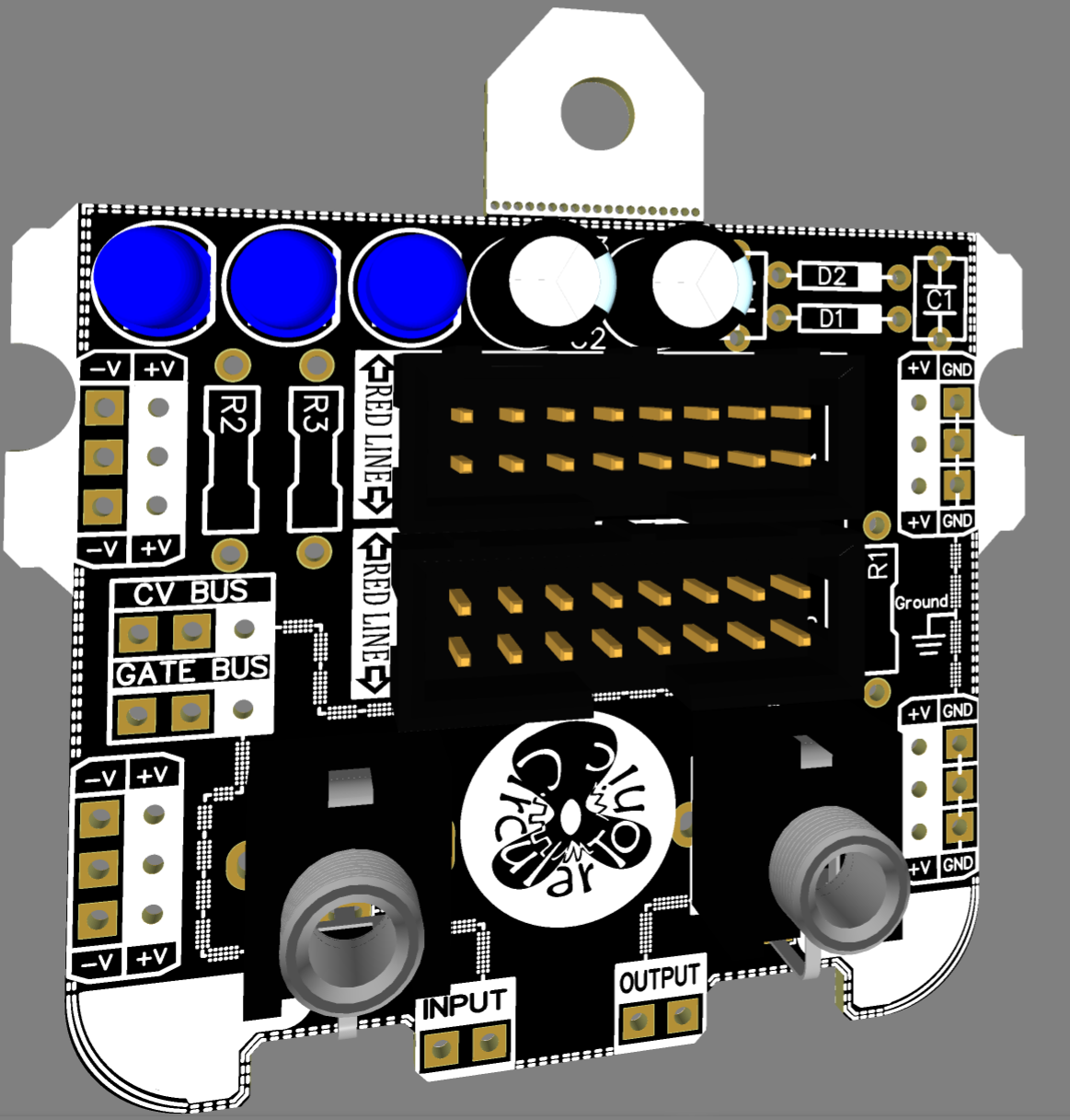

A BreadBoard Compatible Eurorack Power Input for prototyping Synth Circuits
Features
• 3.5mm Jack for Input and Output
•Optional Jumpers for Connecting 3.5mm to the CV/Gate Bus on the Power Connector
•Diode Protection for Reverse Polarity
•LED for Voltage Indication for +12v rail, -12v and +5v Rail
•+12v, -12v and +5v Rail Headers for Power
•3m Built in PCB Screw mounts. So you can mount it on wooden base for a more Firm grip.
• Standard Filter Capacitors for Power rails for Synth Circuits
-Features-
•Breadboard Compatible
•Uses common Style Euro-rack PJ301/PJ398
•Dual use Badge as a Input/output Interface for breadboard
•Jumpers for Connecting 3.5mm to the CV/Gate Bus on the Power Connector
•Small Silkscreen place to write what the type of Input/Output Jack is Labeled
-Why I made it-
I wanted a good Interface for using common eurorack 3.5mm Jacks on a standard breadboard. You always need more jacks and its quite a bit easier to use common components
